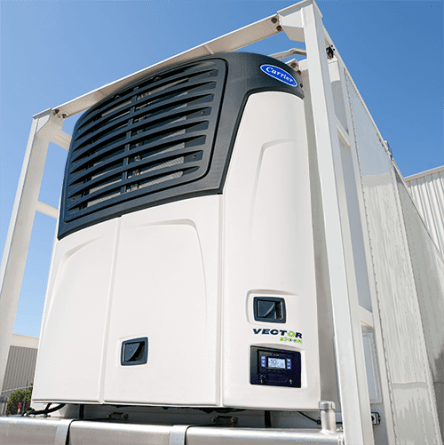

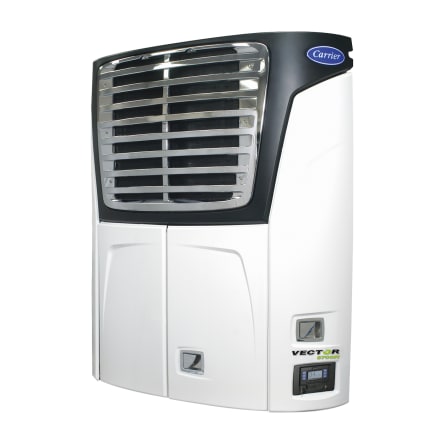

Vector™ 8700R Refrigerated Rail Unit

Built to handle the rigors of intermodal and rail duty.

Features and Benefits:

• E-Drive™ technology. Innovative hybrid design uses a new smart engine to drive the generator powering its all-electric refrigeration system, resulting in better fuel economy and performance.
• Enhanced compliance. Reduced emissions that surpass EPA Tier 4, and lifetime compliant with California Air Resources Board (CARB) requirements without the need for future exhaust systems. Sustainability enhanced with R-452A, a lower global warming potential refrigerant.
• Ultra-high efficiency. Provides 10% greater fuel efficiency than its standard counterpart, thanks to its three-speed engine with common-rail fuel injection.
• Reduced maintenance and exceptional reliability. Fewer moving parts, which reduces maintenance requirements, optimizing reliability and uptime.
• Nationwide support network. More than 180 Carrier Transicold authorized dealers available throughout North America with experience and expertise to provide safe, reliable service wherever needed.
• RailCare™ Warranty. Includes travel time and repair setup for on-site assistance.

Condenser Dimensions
76.4" x 85.7" x 22.8" (1,940 x 2,176 x 579 mm)

Evaporator Dimensions
66.3" x 45.2" x 8.2" (1,684 x 1,149 x 208 mm)

Body Opening
66.8" x 46.0" (1,696 x 1,168 mm)

Approximate Weights
1,815 lb. (823 kg) including electric standby
Remote 50 gallon aluminum fuel tank with mounting brackets: 65 lb. (29 kg)
Battery: 50 lb. (23 kg)

Cooling/Temperature Capacity:
Ambient at 100°F (38°C)

Evaporator Airflow
Applied system performance: 3,100 cfm (5,270 m³/hr)
